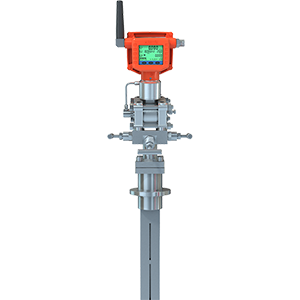

ACF-1ANB wireless integrated intelligent annubar flow meter

Brief introduction ACF-1ANB wireless integratedintelligent annubar flow meter is simple structure no moving parts stable and reliable in long-term use high precision. High standardization degree good linear doesnot need solid flow cali

Model:

Category:

+86-29-86687167

Brief introduction
ACF-1ANB wireless integrated intelligent annubar flow meter is simple structure, no moving parts, stable and reliable in long-term use, high precision. High standardization degree, good linear, does not need solid flow calibration. It can measure all fluids flow rate in the pipe directly. Because of the characteristics of simple installation, small pressure loss, high strength, no affected by wear, without leakage, it has been an ideal alternative product of orifice flow meter. Annubar can be widely used in blast furnace, compressed air, steam and gas flow measurement of industrial and mining enterprises.



2011年款产品展示


Measure theory
When full of pipeline fluid flows through the probe, a high pressure distribution area is generated in front, the pressure is slightly higher than static pressure in pipe. According to the principle of Bernoulli equation, the fluid speeds up when it flows through the probe, there will be a low pressure distribution area generated at the back, the pressure is slightly lower than static pressure in pipe. There will be a part of vacuum at the back of probe when fluid flows through probe, and will appear vortex on both sides of the probe. The cross-section shape of average flow probe, the condition of surface roughness and low pressure hole location are the key factors of probe performance. The stability and accuracy is crucial to the precision and performance of average probe. Flow probe can accurately detect the average differential pressure produced by average speed. There are several pairs of holes to take pressure in high and low pressure area of the probe, which makes it possible to accurately measure the average flow rate.

Products patents:
Utility Model Patent Certificate:
①ZL2008 2 0028605.1  《digital instrument button and display device》
②ZL 2012 2 0299081.6 《wireless integrated static and differential pressure detect device》
③ZL2009 2 0062360.9  《micro power consumption and low pressure drop sensor constant current drive circuit》
④ZL 2011 2 0549792.X 《wireless integrated multi-parameter differential pressure flow meter》
⑤ZL 2013 2 0529448.3 《wireless integrated multi-parameter differential pressure flow instrument gauge》
Patent for industrial design:
⑥ZL 2013 3 0412222.0  《instrument gauge》

Features
- can measure a variety of media, wide application range, high precision, large measuring range;
- take pressure hole anti-blocking, signal stability, small fluctuation;
- low pipe permanent pressure loss and installation cost, free maintenance;
- the structure is simple, safe and reliable, long life time, suitable for single well gas, coal-bed gas metering;
- high and low temperature resistance, resistance to high pressure, measurable gas, liquid and steam, the applicable scope is wide;
- show the cumulative flow and transient flow, pressure, temperature at the same time,

Technique Data
Nominal Diameter: DN20~DN1000
Dominal Pressure: (0~32)MPa
Medium Temperature: (-50~700)℃
System Accuracy: 0.5/1/1.5/2/3
Max Range to Min Range: 20:1
Straight Pipe: 12DN in front and 5-8 DN behind
Connection Type: flanged inserted, thread inserted, pipeline flange, pipeline thread
Operating Temperature: -30℃~70℃
Power Supply Mode: build-in 3.6V lithium battery or 7~30VDC
Output Signal: 4-20mA DC or RS485
Protection Degree: IP65
Exdl: ExdllCT6

Wireless technique
1. Wireless spectrum: ISM(2.4~2.5)GHz(IEEE 802.15.4 DSSS)
2.  Wireless authentication:   a. Zigbee:FCC ID: MCQ-XBS2C,IC: 1846A-XBS2C
                              b. WirelessHART:IEC 62591 HART,GB/T 29910.1~6-2013  HART
3.  Wireless protocol: a. Zigbee:Zigbee 2007
                      b. WirelessHART:IEC62591
4.   Receive sensitivity: a. ZigBee:-100dBm
                      b. WirelessHART:-95dBm
5.   Transmit power: 8dBm(6.3mW)
6.   Transmission distance: 300m 800m
7.   Network security: AES-128 encryption algorithm, the network authentication and authorization
8.   Immunity ability:  automatic frequency hopping technology
