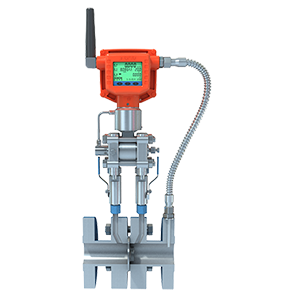

ACF-1-PZ wireless integrated smart nozzle flow meter

Brief introduction ACF-1-PZ wireless integratedsmart nozzle flow meter is differential pressure generator to measurethe flow cooperate with all sorts of differential pressure gauge or differential pressure transmitter to measure all kinds




Brief introduction
ACF-1-PZ wireless integrated smart nozzle flow meter is differential pressure generator to measure the flow, cooperate with all sorts of differential pressure gauge or differential pressure transmitter to measure all kinds of fluid flow in pipes. ACF -1PZ wireless integrated nozzle flow meter has the features of high temperature and high pressure resistance, impact resistance, long service life, large measuring range, high measuring accuracy, low pressure loss, etc. These features all can be used for trade settlement. Compound use with differential pressure transmitter, it can measure the flow rate of liquid, steam and gas. It is widely used in petroleum, chemical industry, metallurgy, power, light industry, etc.




Measure theory
When fluid filled with pipe flow through the nozzle, the flow will form local contraction at the throttling area of the nozzle to accelerate the flow and reduce the static pressure, then there will be pressure drop also called differential pressure before and after the nozzle. The bigger of the medium flow rate, the bigger of the differential pressure, so we can measure the flow rate by measuring the differential pressure.

Products patents
Utility Model Patent Certificate:
①ZL2008 2 0028605.1  《digital instrument button and display device》
②ZL 2012 2 0299081.6 《wireless integrated static and differential pressure detect device》
③ZL2009 2 0062360.9  《micro power consumption and low pressure drop sensor constant current drive circuit》
④ZL 2011 2 0549792.X 《wireless integrated multi-parameter differential pressure flow meter》
⑤ZL 2013 2 0529448.3 《wireless integrated multi-parameter differential pressure flow instrument gauge》
Patent for industrial design:
⑥ZL 2013 3 0412222.0  《instrument gauge》
- nozzle pressure loss is less than orifice, straight pipe length is short;
- circular arc form design, good abrasion resistance, flow stability, can measure liquid, gas, steam and smudgy medium;
- corrosion resistant performance is good, more suitable to measure single well natural gas and coal bed gas and other raw gas than the orifice plate;
- replace the nozzle,  the measurement range can be adjusted within wide range, meet the changes needs of different stages of the single well production capacity;
- no real flow calibration, high precision, stable outflow coefficient;
- simple structure, convenient installation, safe and reliable, maintenance cycle is long, long service life;
- show the cumulative flow and transient flow, pressure, temperature at the same time
Technique Data:
Nominal Diameter: DN20~DN1000
Dominal Pressure: (0~32)MPa
Medium Temperature: (-50~700)℃
System Accuracy: 0.5/1/1.5/2/3
Max Range to Min Range: 4:1
Straight Pipe: 10DN in front and 5DN behind
Connection Type: Flange clamping type/Pipe welding type/wireless integrated embedded type
Operating Temperature: -30℃~70℃
Power Supply Mode: build-in 3.6V lithium battery or 7~30VDC
Output Signal: 4-20mA DC or RS485
Protection Degree: IP65
Exdl: ExdllCT6
Wireless technique:
1. Wireless spectrum: ISM(2.4~2.5)GHz(IEEE 802.15.4 DSSS)
2.  Wireless authentication:   a. Zigbee:FCC ID: MCQ-XBS2C,IC: 1846A-XBS2C
                              b. WirelessHART:IEC 62591 HART,GB/T 29910.1~6-2013  HART
3.  Wireless protocol: a. Zigbee:Zigbee 2007
                      b. WirelessHART:IEC62591
4.   Receive sensitivity: a. ZigBee:-100dBm
                      b. WirelessHART:-95dBm
5.   Transmit power: 8dBm(6.3mW)
6.   Transmission distance: 300m 800m
7.   Network security: AES-128 encryption algorithm, the network authentication and authorization
8.   Immunity ability:  automatic frequency hopping technology
Selection mode:
